Thermo 500 Plus

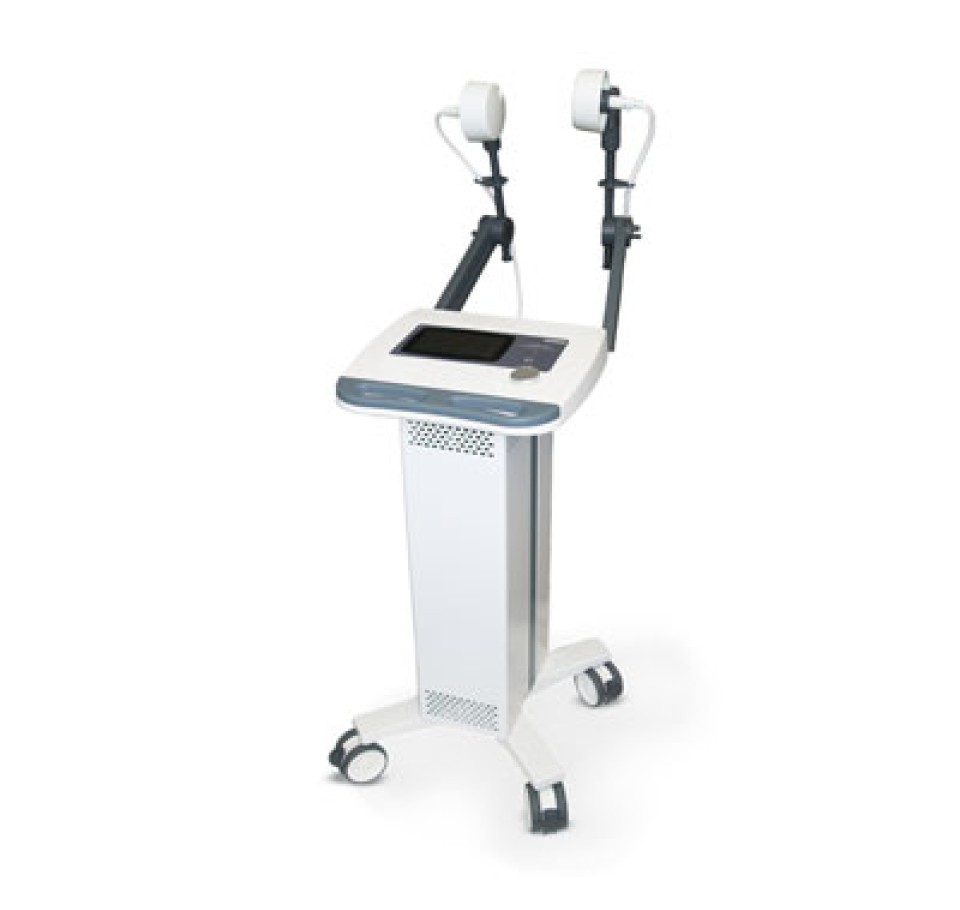

Gymna Thermo 500+
- Continuous & pulsed short wave therapy in one device
- Optimal performance in both modes with two 100 mm electrodes
- Optional Monopulse applicator, for use in pulsed mode
- Colour touch screen for use with surgical gloves
- Clear user interface allows for quick set-up
- On screen user assistance & pictorial guidance with clinical protocols
- Wide range of pulse frequencies & widths
- Operation in continuous & pulsed mode
- Output automatically tunes with the patient
The Gymna Thermo 500+ is a medical application of electromagnetic energy. The waves penetrate deep into the body and can have thermal and athermal effects. The thermal effect consists of a heating up that considerably improves the circulation. The athermal effect generates cellular effects. Both contribute to strong physiological effects that make the method suitable for application in a wide range of conditions.
| Mains Supply: | 100-240 Vac, 1kVA max, 50/60Hz |
|---|---|
| Size(L x W x H): | 470 x 470 x 940 mm |
| Weight: | 38 kg |
| Frequency: | 27,12 MHz |
| Output Power: | 400 W maximum in Continuous Mode;1000 W maximum Peak Power in Pulsed Mode |
| Output Modes: | Continuous, Pulsed 1 in 3,2 in 3 & 3 in 3 |
| Classification: | Class 1 |
| Type: | BF (EN 60601-1) |
| Pulse Width: | 20 - 400µs |
| Pulse Frequency: | 5 - 800 Pulses Per Second |
| Tuning: | Automatic |
| Timer: | 0 - 30 minutes with termination of output & alarm at end of treatment |
